Speed Gates
Our range of Pedestrian Speed Gates are the ultimate solution for control of pedestrian access, offering a high level of security, speed in operation and anti-tailgating benefits of a physical, traditional turnstile but without the need for a manually operated turnstile arm.
Each Gate is designed to allow access to up to 25-30 people per minute in either direction and multiple lanes can be installed side by side by means of double sided intermediate pedestals to enhance throughput on particularly busy entrances.
When a valid card is presented the illuminated, clear gate paddles open in less than 1 second to allow access. The users movement is then monitored through the Gate by several built in photoelectric safety beams – as soon as they have passed through the Gate, the glass paddles return to the fully closed position just as quickly.
The photocell beams can also trigger an alarm tracking system and visual indicator if a person attempts to pass through the Gate or jump over the paddles without first presenting a valid card. The alarm also activates if someone attempts to pass though the Gate in the opposite direction to that which access has been granted. With 6 high-level detection sensors, user protection is guaranteed, even at a high throughput rate. Protection is also provided against unauthorised personnel simultaneously passing through i.e. tailgating.
Speed Gate Manufacture

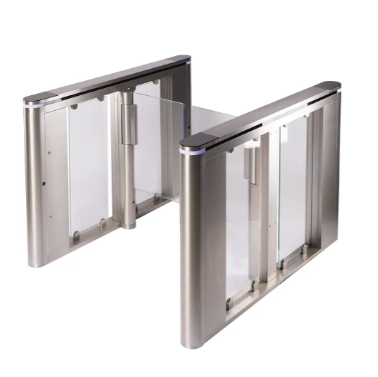

Each Speed Gate pedestal is manufactured from high quality stainless steel and comes complete with passageway direction indicators built in to the end of each pedestal, along with a flush mount toughened glass panel to allow proximity card readers to be seamlessly integrated within the units.
Every Speed Gate system, installed by Auto Mate Systems Ltd, can be connected to the building fire alarm system to automatically open and allow unrestricted access in the event of an emergency. In the event of a sudden power loss, the controller retains enough power to automatically retract the gate paddles to allow safe access.
Speed Gates – Supply & Installation
For a complete entrance solution we can also install automatic glass swing gates alongside the pedestrian Speed Gates, for DDA access or delivery of bulky items – along with matching stainless steel and toughened glass balustrade infill sections in site specific sizes or designs.
