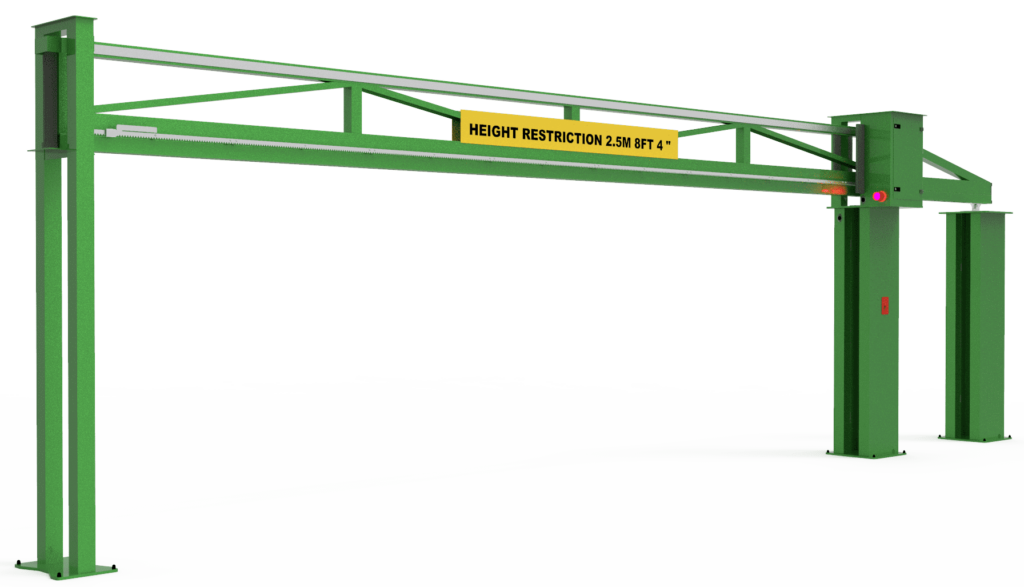

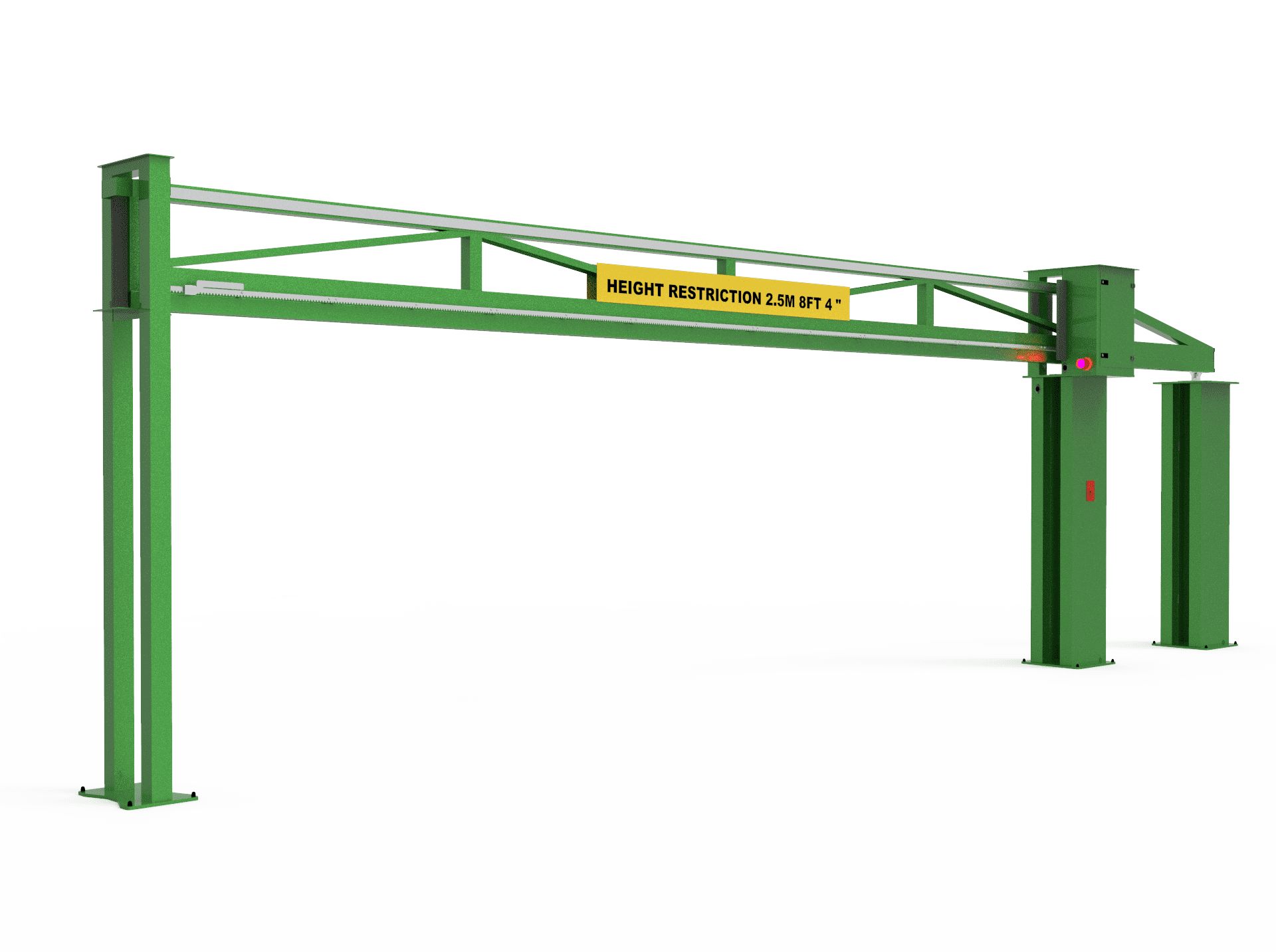

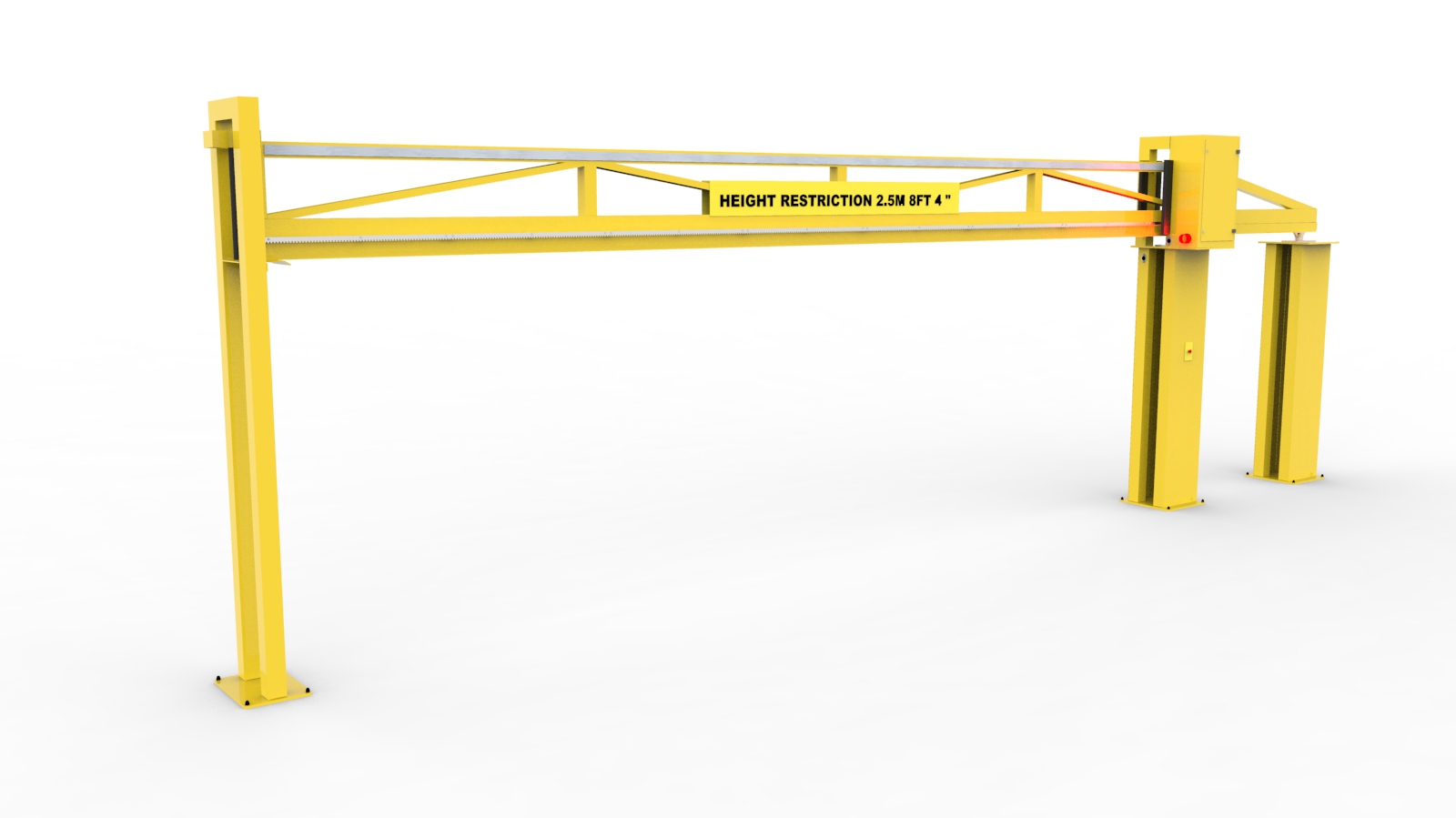

Automatic Sliding Height Restrictor

The AMS HDR Automatic Sliding Height Restrictor features fully welded steel construction and heavy duty catch post ensuring the highest level of security, and the controls are compatible with any access control system.

Barrier drive is by a three-phase motor which operates from a single-phase supply via an inverter.

This is controlled from a fully programmable PLC system, to fully controllable operation with slow down features and programmable timing should the client wish to hold the unit open for a set time.

These height restrictors are fitted with fully compliant safety systems, and are almost silent in operation. The lattice structure and large section base rail of the moving leaf present an obvious and highly visible deterrent to unauthorized vehicles.

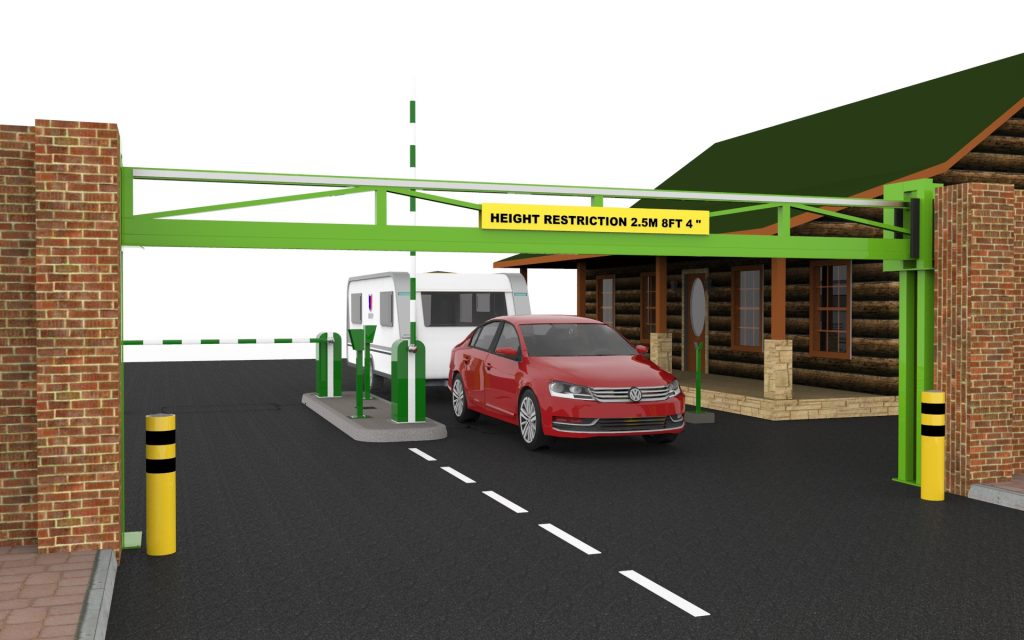

The AMS HDR Automatic Height Restrictor combines the benefits of a standard height restrictor with an automatic gate. It was originally designed to provide a solution to a specific client problem, which required free access to cars whilst only allowing higher vehicles to pass when a remote control button is pressed.

Similar in construction to our range of automatic cantilever sliding gates, these height restrictors are fitted with fully compliant safety systems, and are almost silent in operation.

The fully welded steel construction and heavy duty catch post ensures the highest level of security, and the HDR model is compatible with any access control system.



Automatic Sliding Height Restrictor

Technical Specification
Maximum Span 10 metres
Maximum Height 3.5 metres (depending on span)
Opening / Closing Time 5 seconds per metre (adjustable)
Drive Unit 3 phase motor and wormed gearbox – complete with rack and pinion final drive
Safety 6 x Cat. 3 edges, dual-height photo cells, emergency stop button and a flashing beacon / sounder
Cycles 100% duty cycle
Power Supply 230v AC 50Hz 6amp

PLC

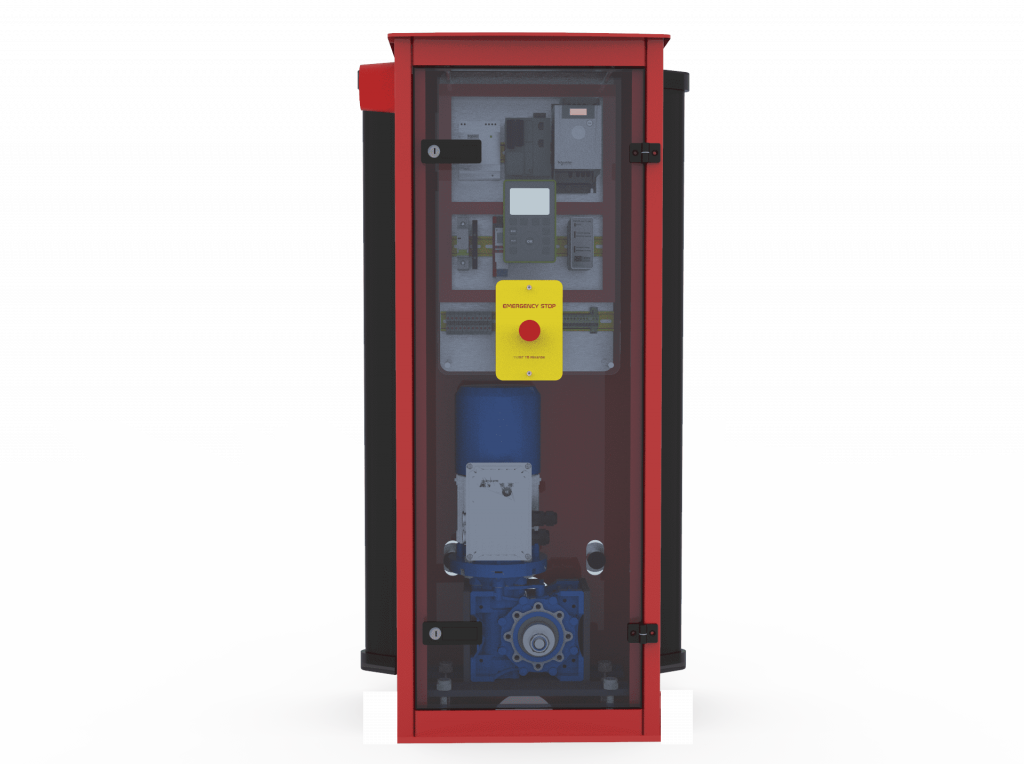

Controlled by a highly-reliably and precision engineered PLC with an inverter – all pre-wired and factory tested to allow connection to your mains supply

Safety Systems

The Restrictor is equipped with market-leading safety systems, as standard.  This includes 6 x Cat. 3 Safety Edges, twin Safety Photo Cells at different heights, a cabinet mounted Emergency Stop button and a flashing beacon / sounder.  Working with our unique control software, this provides the quickest response to a safety event in the industry

Gate Drive

Reliable and almost silent in operation, the Height Restrictor is powered via an inverter driven motor and gearbox, providing 3 phase controllability with single phase economy

Visual Deterrent

The lattice structure and large section base rail of the moving leaf present an obvious and highly visible deterrent to unauthorised vehicles

Finish

The stanchions are powder coated and the sliding leaf is epoxy primed and painted.  Any standard RAL colour is available at no additional cost Рplease check with our team if there are any lead time implications for specific RAL colour requirements

For any further information, or, a quote on our Automatic Sliding Height Restrictors, please do not hesitate to get in touch via telephone, fax, email or through our social media channels;
